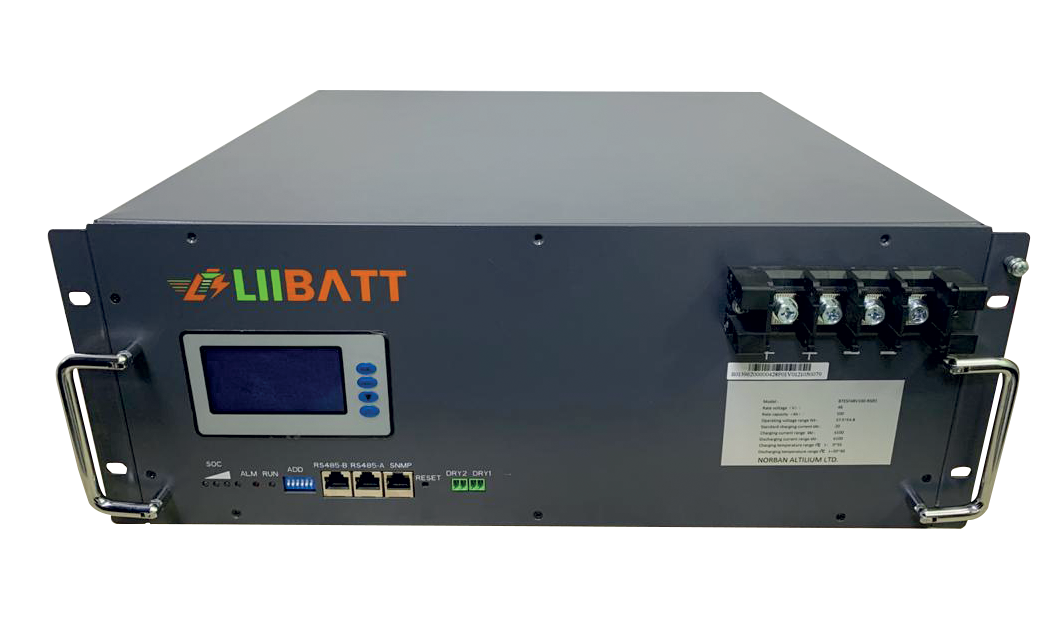

LIIBATT 48V-100Ah Lithium Ion Battery Pack
Category: Telecommunication Series
Quick Overview
Brand: LIIBATT
Operation Telco, ATM,
Model: 48V-100Ah
Capacity: 100AH
Nominal Voltage: 48V
Cycle Life: ≥ 4000
Weight: 45 Kg
Category: Telecommunication Series
Brand: LIIBATT
Operation Telco, ATM,
Model: 48V-100Ah
Capacity: 100AH
Nominal Voltage: 48V
Cycle Life: ≥ 4000
Weight: 45 Kg
Norban Altilium Ltd. is introducing the LIIBATT series, a 48V100Ah Lithium-ion (LiFePO4) battery pack. This battery pack will function as an ecologically viable alternative power storage solution. The LIIBATT 48V series ensures a long service life for applications such as telecom and datacenter for power backup. It is a compact package of high energy density to save space and weight. When combined with the intelligent remote monitoring feature, its maintenance-free architecture can reduce the need for on-site maintenance and save significant operational costs for clients. This so helps to reduce the TCO (Total Cost of Ownership) in comparison to traditional VRLA batteries.
+ Lithium Ferro Phosphate (LiFePO4) prismatic cell with high safety and reliability.
+ Fully automated production, the process is mature & stable, excellent consistency and lifespan.
+ IEC62133, UL, UN38.3 Certification.
+ Telco/Datacenter grade PACK technology.
+ Directional explosion-proof valve design, which can effectively avoid cell failure is magnified and ensure 100% safety.
+ Comprehensive thermal simulation and testing to ensure the safety of each cell in the case of large current discharge.
+ Charge and discharge independent control & protection to maximize system availability.
+ Voltage, Current, Temperature, SOH, SOC real-time detection, providing a variety of protection
+ Intelligent Cell Balancing.
+ Pack Temperature monitoring.
+ Pack Health monitoring.
+ Parallel support for more capacity.
+ Compatible with standard telecom rectifiers & UPS.
+ Anti-theft feature
+ RS485/RS232, comply the needs of network access.
+ Optional accessories for SNMP access
+ Communication of monitored data via BMS.
| Items | Specification |
|---|---|
| Rated Voltage (V) | 48V |
| Rated Capacity (Ah) | 100 |
| Total Energy (Wh) | 4800 |
| Charge Voltage (V) | 54.75 |
| Max Recharge Current (A) | 100 |
| Peak Discharge Power (W)-3s | 6300 |
| Dimension (LxWxH mm) | 508x483x153 |
| Weight (Kg) | 48 |
| Protection Standard | IP20 |
| Working Temperature Range | Charging: 0~50 degree; Discharging: -20~60 degree |
| Humidity | 0~95% |
| Communication Port | RS485 (Modbus/RS232), RS485 is standard |
| Cycle Life (25 degree) | equal or more than 3000 times |
| Protection | Over Voltage Protection (Cell System), Low Voltage Protection (Cell System), High/Low Temperature Protection, Short Circuit Protection. |
| Storage Temperature | -30~50 degree |
| Working Temperature Range | Charging: 0~55 degree, Discharging: -20~60 degree |
| Other optional accessories | Display, RS485 to SNMP |
